Spray Coating Robot for Automated Powder Coating Lines

Irobhothi lethu lokufutha lisetshenziselwa ukunamathela ngempushana okuzenzakalelayo kwensimbi, ipulasitiki, nezinto zokusebenza eziyinhlanganisela. Ingahlanganiswa emigqeni yokukhiqiza enamathelayo edinga izindlela zokufafaza eziphindaphindekayo kanye nemingcele yokugqoka elawulekayo.

Izinzuzo

±0.05 mm phinda ukuma kwezindlela zokumboza eziphindaphindekayo
Ukufinyelela kwengalo okungu-2131 mm ukuze kufakwe i-workpiece enkulu
Uhlelo{{0}isistimu yokufundisa yamahhala yokushintsha umkhiqizo ngokushesha
Ukuphakelwa kwempushana okuzinzile kokukhiqizwa kwenqwaba yomjikelezo omude-
Ihambisana ne-conveyor kanye nokuhlanganiswa kweplathifomu ejikelezayo
Isekela ukusebenza kokunamathela okuqhubekayo ekuhlelweni okungaguquki kokukhiqiza
Umthwalo okhokhelwayo ongu-10 kg usekela ukuhlangana kwe-electrostatic spray kanye nomzila wekhebula ngaphandle kokuphazamisa ukunyakaza

Ukucushwa Kwesakhiwo Sesistimu

Ingalo yerobhothi yezimboni engu-6-eksisi
Ukuhlanganiswa kwesibhamu se-electrostatic spray

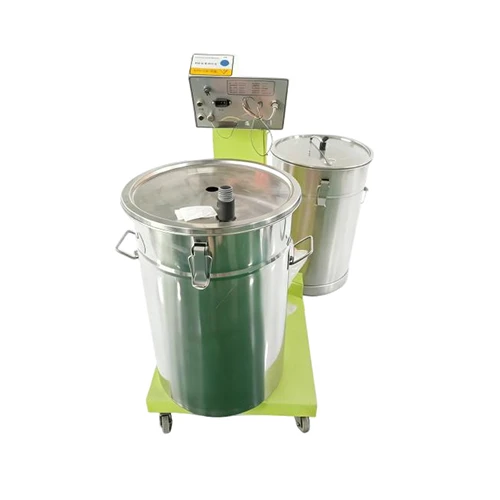

Uhlelo lokuhlinzekwa kwempuphu kanye nokudla
I-pendant yokufundisa yokurekhoda kwe-trajectory
Ikhabhinethi yokulawula (ukulawula ukunyakaza + uhlelo lukagesi)
Ibhentshi lokusebenzela elilungisiwe noma iplatifomu yokulungisa

Imingcele Eyinhloko Yezobuchwepheshe

Ipharamitha	Ukucaciswa
I-Arm Span	2131 mm
Phinda Ukunemba Kokumisa	±0.05 mm
Umthwalo Omkhulu	10 kg
Amandla Amandla	6.48 kVA
Isisindo Sezisetshenziswa	Cishe. 230 kg
Ikilasi Lokuvikela	Isihlakala: IP54, Umzimba: IP40

Izimo Zokukhiqiza Ezisebenzayo

Imishini ngokuvamile isetshenziswa ekusetheni ukukhiqiza okulandelayo:

Imigqa yokumboza impushana yezingxenye zesakhiwo sensimbi
Imigqa yokuqedela engaphezulu yezindlu zasendlini
Izinqubo zokumboza ifenisha yezimboni
Imigqa yokumboza iphrofayili ye-aluminium
Imigqa yokwelashwa kwengxenye yensimbi evamile yezimboni

Ukuhambisana Kwezinto Ezisetshenziswayo Nokwemboza

Uhlelo luhambisana nezinto zokusebenza ezilandelayo:

Insimbi ebandayo-egoqiwe
Insimbi engaphekiwe
Ingxubevange ye-aluminium (isb, amaphrofayili angama-6063)
Amapulasitiki e-ABS / PC
I-MDF nezindawo zokhuni ezenziwe ngobunjiniyela

Izinhlobo ezihambisanayo ze-powder coating zihlanganisa:

I-epoxy powder coatings
I-polyester powder coatings
I-Fluorocarbon powder coatings
Ama-coatings asebenzayo (-okugqwala / isimo sezulu-okungazweli / ukuqedwa kokuhlobisa)

Usekelo Lokucushwa Kwephrojekthi

Ukucushwa kwesistimu kungalungiswa ngokusekelwe kulokhu:

Ubukhulu bomsebenzi kanye nejometri
Izidingo zamandla okukhiqiza
Uhlobo lwezinto zokumboza
Isakhiwo somugqa esikhona
Indlela yokuhlanganisa ezenzakalelayo

Ukuze uthole ikhotheshini nokuhlola kobuchwepheshe, ulwazi olulandelayo luyadingeka ngokujwayelekile:

Imidwebo ye-workpiece noma izithombe
Amandla okukhiqiza alindelwe
Izidingo zenqubo yokumboza
Izimo zomugqa wokukhiqiza ezikhona
Indlela yokuhlanganisa ekhethwayo

product-750-683

Izinkambu Zokusebenza Nezinto Ezivumelanayo

Inkambu yohlelo lokusebenza	Izinto Ezijwayelekile	Izinto Ezivumelanayo Nezinhlobo Zempushana
Umshini Wasekhaya	Iziqandisi/amakesi omshini wokuwasha, amayunithi e-air conditioner, ama-microwave liner, izisekelo zokupheka irayisi	Insimbi ebandayo-egoqiwe, i-ABS, i-PC/ABS; I-Epoxy powder, i-Polyester powder
Ifenisha Nempahla Yasekhaya	Amaphaneli efenisha (insimbi/ukhuni), amafreyimu ewadilophu, amaslayidi ekhabethe, izibambo zeminyango, ihardware yendlu yangasese	Insimbi, ukhuni oluqinile, i-MDF; I-matte polyester powder, i-Wood grain transfer powder, i-Antibacterial powder
Isakhiwo Nokuhlobisa	Amaphrofayili e-Aluminium emnyango/amafasitela, amakhethini odonga lwamakhethini, amafreyimu eminyango yomlilo, amaphaneli osilingi ensimbi	I-aluminium engu-6063, insimbi, insimbi yombala; Isimo sezulu-impushana ye-polyester engazweli, i-Fluorocarbon (UV-iyamelana), Itshe{3}}njengempushana

-Ekulingiseni Isayithi kanye Nesakhiwo Vala-Ukubonisa Phezulu

product-750-683

Umfanekiso 2.1{1}Ekusayithini I-Physical Object Diagram

Ukufundisa I-Pendant kanye Nesibhamu Sokufundisa

Electrostatic Spray Gun

I-Electrostatic Sprayer

Uhlelo{{0}Isistimu Yamahhala

Robot electric control cabinet

Isisekelo Sokulungisa Esiphakeme/Ibhentshi Lokusebenzela

FAQ

Q: Ingabe i-robot yokugcoba i-spray ingahlanganiswa emgqeni okhona we-powder?

A: Yebo. Isistimu ingahlanganiswa ku-conveyor{1}okusekelwe, kweplathifomu ye-rotary, noma izakhiwo zokunamathela ezizimele, kuye ngesikhala sokukhiqiza esitholakalayo kanye nezidingo zomjikelezo.

Q: Ingabe ukushintsha umkhiqizo kudinga ukuhlela kabusha?

IMP: Uhlelo-lwesistimu yokufundisa yamahhala luvumela opharetha ukuthi barekhode izindlela ezintsha zokufutha ngokuqondile, ukunciphisa isikhathi sokusetha phakathi nezinguquko zemodeli yomkhiqizo.

Q: Yiziphi izinto zokumboza ezisekelwayo?

IMP: Uhlelo lusekela i-epoxy, i-polyester, i-fluorocarbon,{0}}i-corrosion, kanye nezimbotshana zempushana zokuhlobisa ezisetshenziswa ekufakweni kwempushana yezimboni.

Q: Ingabe irobhothi lingafafaza izindawo eziyinkimbinkimbi namakhona?

A: Yebo. 6-isakhiwo se-axis irobhothi sisekela ukufuthwa kwama-engeli amaningi kuma-grooves, izindawo ezigobile, imiphetho, namajiyometri angavamile.

Q: Yiziphi izindawo zokukhiqiza uhlelo olunconyelwe zona?

IMP: Uhlelo ngokuvamile lusetshenziswa ezindaweni zokukhiqiza ezimaphakathi-kuya{1}}kuya{1}}eziphezulu ezinemijikelezo yokumboza ephindayo kanye nezimo zenqubo egxilile.

Q: Yiluphi ulwazi oludingekayo ukuze uthole ikhotheshini?

A: Ulwazi lokuhlola olujwayelekile luhlanganisa ubukhulu bengcezu yokusebenza, umthamo wokukhiqiza olindelekile, uhlobo lwempahla yokumboza, kanye nesakhiwo somugqa wokukhiqiza esikhona.
